2022
Year
CHEOY LEE
Builder
96' (29.26m)
Length
4
Cabins
REUNION - 2022 96' CHEOY LEE CLX96
Fort Lauderdale Florida United States
$7,495,000 USD
Yacht for sale is a 2022 CHEOY LEE 96' "REUNION" CLX96 Motor Yacht in Fort Lauderdale, Florida, USA.
This 2022-built CL Yachts CLX96 REUNION is the flagship of the CL Yachts X Series. She breaks from convention among 90–100 foot flybridge motor yachts, pairing rugged, go-anywhere seakeeping with an open, loft-style interior and vast entertaining spaces rarely found in her class. Always maintained to extremely high standards REUNION is offered for sale with a recently completed (Sept 2026) pre-sales survey completed by Elite Marine Surveyors and a CAT engine warranty through January of 2028.
At 96’9” (29.50m) LOA with a generous 24’ beam, she is powered by twin Caterpillar C32 ACERT diesels for a top speed of 25 knots and 22-knot cruise. Built in composite construction to RINA classification with a 10-year structural hull warranty, she sleeps 8 guests across 4 cabins plus 4 crew across 2 crew cabins- equally at home hosting effortless entertaining at anchor or covering serious miles on an extended adventure.
On deck, REUNION’s design signature is as practical as it is dramatic. A heavy-duty hydraulic Z-Lift swim platform built into the swim platform doubles as an 800kg/1,764lb tender launcher and submerges to form an integrated beachside lounge large enough for the entire family. Forward on the main deck, her generous 24-foot beam opens into the “Piazza del Sole,” a circular foredeck lounge with reconfigurable seating and drop-down teak tables that easily hosts a dozen guests for sundowners. Above, the enclosed sky lounge and helm is wrapped in 360-degree glass that lowers completely on both sides at the touch of a button, turning a climate-controlled retreat into a breezy, open-air entertaining deck.
Below, REUNION breaks from convention again with a single-level, open-plan main deck running unobstructed from the aft deck to the bow- traditional main-deck cabins are gone entirely, freeing up flowing lounge, dining, day head, and galley spaces that live and breathe like a loft. On the lower deck, Her full-beam owner’s suite is just as generous, anchored by a large skylight that floods the berth with natural light. Forward of a thoughtfully separated engine room, the crew area is equally well considered, with two cabins and a lounge complete with laundry, a sink, and a refrigerator, reached from the aft deck and, via a watertight door, directly from the engine room itself.
Get more information on this listing
LENGTH
96'
BUILDER
CHEOY LEE
ASKING PRICE
$7,495,000 USD
BUILT
2022
BEAM
24'
DRAFT
N/A
MAX SPEED
24 Knots
CRUISING SPEED
22 Knots
CABINS
4
GROSS TONNAGE
0.00
DISPLACEMENT
231000 Lbs
LOCATION
Fort Lauderdale, Florida, USA
Get more information on this listing
FULL SPECIFICATIONS
Optional Equipment
- Gyro stabilizer, model MC2 Quick Gyro, X56 with at anchor/ZeroSpeed stabilization
- Side-Power Hydraulic actuated fin stabilization, model SPS66 B
- Side-Power hydraulic stern thruster
- 12 off 60mm carbon fibre poles for flybridge foredeck and swim platform
- Life raft and chocks
- Tender chocks on swim platform with backing plates and deck and flush tie down eyes
- Powered window shades in place of manual
- Stack up 24” washer/dryer in crew lounge
- Watermaker, BLUE WATER legend 950/2, BLUE WATER legend 1500/2 or BLUE WATER legend 1850/2
- Fold down davit (800kgs) under the watertight hatch on port side of swim deck
- RINA C + HULL•MACH; Y Certificate
- KVH Trac Vision UHD7 for Direct TV
- Sirius XM satellite radio
Construction
- Cored fiberglass hull, deck and superstructure
- Cored fiberglass bulkheads and cabin soles
- Infused bi-axial and multi-axial E-glass and carbon fibre laminates, vinylester resin
- Integral fiberglass fuel, fresh water and holding tanks, with baffles and cleaning manholes
- Fiberglass rub rail with stainless steel capping
- Tinted (except pilothouse), laminated tempered glass windows
- ALEXSEAL exterior finish
- ALEXSEAL non-skid exterior decks
- Teak decking on aft deck, swim platform, flybridge deck, side deck and foredeck
- 316 stainless steel deck hardware
- SEAHAWK epoxy barrier system applied to hull bottom
- Two coats of SEAHAWK antifoul bottom paint
- RINA Hull Construction Certificate
Deck Hardware
- Two MAXWELL VWC 4000 (hydraulic) windlasses with 1/2” gypsy, rope capstan and chain stopper
- Local windlass controls with remote at helm station
- Two 80kg HHP Pool Type anchors
- Two 250’ lengths of 1/2” high test galvanized chain
- Walkway lighting in side deck overhangs
- Polished chrome courtesy lights and step lights for moulded stairs
- Fresh water anchor wash down
- Stainless steel mooring bollards (4)
- Stainless steel fairlead/spring cleats (6)
- Stainless steel rails (1.25”)
- Stainless steel burgee flag staff on bow
- Stainless steel flag staff
- Boarding gates at aft deck, port and starboard
- Step plates located at deck entrances
- Scuppers draining to boot top
- Foredeck hatches for storage and chain locker access
- 60mm sockets for sunshade poles on flybridge and swim platform (sunshade/poles are optional)
- Two MAXWELL 85 TDC Vertical capstans on aft deck with local control
Interior Finishes
- Portofino (Walnut) interior
- Painted ceilings except lower deck foyer and champagne lounge ceiling
- Hardwood floors throughout guest accommodation, stained teak and holly in salon and pilot house
- CORIAN where specified (Solid Series colour selection)
- Quartz counter top in galley and wet bar
- AMTICO flooring in crew areas
- Upholstered indoor and outdoor seating
- Sintered stone tiles in guest heads wall and floor
- Loose furniture package including chairs, chaise lounge, etc.
- Soft goods package including bed cover, runner, throw pillow, etc.
Electrical Systems
- CZONE monitoring and alarm system
- 220/110vAC, 50/60 Hz and 24/12vDC electrical panels. Main panels in engine room, sub-panels throughout the yacht
- ACR 100 searchlight with dual station remote control
- LED lighting throughout for interior, exterior, cabinet and step lights, dimmable in key areas
- LED navigation lights
- Automatic wardrobe lights
- Emergency lights, automatic at loss of primary lighting system, with independent DC power supply
- AC outlets in galley, heads and exterior are GFI type
- Two 24vDC 8D battery banks for engine starting and ship service
- One 24vDC 60A battery charger
- Battery parallel system at helm station
- Two 24vDC 4D battery banks for generator starting
- One 24vDC 95A battery charger
- One 24vDC 4D battery bank for electronics with 60A 12vDC VANNER power supply for 12vDC electronics
- One 24vDC 45A battery charger
- Two GLENDINNING Cablemaster shore power cable retrieval systems, 230vAC 100A, with two 100 ft. cables
- Copper bonding system, connecting all through hull fittings and major metal components to zinc anodes
- Two 100A isolation transformers for shore power systems and paralleling controller
- Dynaplate grounding plate and strap to pilothouse and flybridge ground terminal boards
- Voltmeters and ammeters for supply circuits
- Generator/shore power selector switches and shore power polarity indicator
- Six underwater lights
Engine Room & Machinery
- Twin CATERPILLAR C32 ACERT (1,900bhp each) diesel engines, fresh water cooled, 24vDC starting
- Full engine warranty through January 25, 2028
- ZF3050A reverse/reduction gearboxes
- Local mounted start/stop instrument panels for main engines and generators
- Under water exhausts, with bypass and fiberglass mufflers
- DELTA T engine room ventilation via air/water demisters
- Twin KOHLER generators, 45/53kW with sound guards and Decision-Maker 3500 paralleling controller for automatic start/stop/parallel and load share between generators
- 220vAC reverse cycle chilled water air conditioning (except engine room)
- CENTEK combo generator mufflers, air/water separator type, with hull side exhaust
- Fire protection consisting of manually and automatically actuated FM200 fire extinguisher system. Upon system actuation audio/visual alarms sound, engines, generators, fuel lift pumps, fuel transfer pumps, blowers are shut down and hull side ventilation dampers are closed
- SIDEPOWER hydraulic bow thruster
- SIDEPOWER underway fin stabilizer system
- OPTIMUS power steering system
- REVERSO lube oil change system with manifold and hoses to all engines and gearboxes
- RACOR filters for main engines and generators
- Two 28 gallon water heaters with hot water ring line and circulating pump for instant hot water
- HEADHUNTER Mach 5 water pump and accumulator tank for fresh water pressure system
- Water filter (sediment and charcoal) unit for whole system
- Sink with fresh water hose bib
- Automatic bilge pumps with electronic level detectors, for each compartment
- Fuel management system, consisting of fuel shut-off valves and fuel transfer pump with meter system
- Fuel, fresh water, black water and grey water tank monitoring
- Black water holding tank system. Macerator pump for pump out of holding tank direct over board, or to vented deck fitting for shore side disposal
- Prepare for ECOMAR sewage/grey water treatment system, including mounting, plumbing and electrical systems
- Prepare for watermaker, including mounting, plumbing and electrical systems
- GROCO bronze raw water strainers for all engines and sea water pump intakes
- Seacocks on all through hull fittings below the waterline
- Fiberglass battery boxes
- Battery voltmeters
- Noise and vibration attenuation for engine room space
- AQUALOY 22 or equal propeller shafts
- Stainless steel rudder blades
- Nibral propeller shaft struts
- Nibral propellers, 5 blade, class S, dynamically balanced
- VESCONITE Hilube shaft bushings and TIDES MARINE rudder bushings
- TIDES MARINE shaft seals
- AQUA SIGNAL LED overhead lights
- Smoke detector
- Heat detector
- AC GFI outlets
- Watertight entrance door from crew area
- Watertight emergency escape hatch from engine room to VIP stateroom
Pilothouse/Flybridge
- SEASTAR Optimus electro-hydraulic power steering
- MATHERS MC2000-2 electronic engine controls
- Three 22” Multi-Function Displays
- Instrument and electronic console
- Engine instrumentation and alarms
- RITCHIE 5” compass with light, dimmer and cover
- Custom stainless steel steering wheel
- Two STIDD helmsman’s seat with vinyl cover
- CZONE monitoring system (see Electrical Systems)
- AC outlets
- USB power outlets
- Remote control for anchor windlass
- Windshield wipers with fresh water wash system
- Overhead lights with dimmer control/switch
- Red night lights with dimmer control/switch
- Windshield defroster
- Stainless steel rails around flybridge
- Fiberglass L-shaped lounge seat with upholstered cushions on starboard side
- Oiled teak table top with stainless steel pedestals
- Scuppers and drainage system for water to lower deck
- Lightning arrester system
- Stainless steel/acrylic hatch and stainless steel staircase with teak steps to aft deck, with stainless steel rails and gate
- Fresh water wash down hose bib in storage cabinet
- Painted fibreglass cabinet with provision for gas BBQ with CORIAN counter top
- AC GFI outlet
- ACR 100 quartz halogen search light, remote dual station control
- Twin trumpet air horn
- Teak deck
- Cup holders
- Pop up mood lights on forward Portuguese terrace port and starboard
- Fixed adhesion type tinted tempered/laminated glass windows
- Recessed window boxes with manual window blinds
- Stainless steel frame tempered glass hinged door to pilothouse
- Up/down electric window on aft bulkhead and pilothouse port and starboard side
- Wet bar with CORIAN top and sink with cold water faucet, U-LINE fridge and ice maker
- Upholstered settee
- Pop-up TV cabinet for 50” TV
- Combined smoke/CO detector
- Painted fiberglass storage cabinet with upholstered settee on port side with CORIAN counter top
- Fabric sunroof for aft overhang
- Courtesy lights at deck level
- Internal stair case to main salon
- Bar stools (3)
- Sockets for awning posts
- ZF remote engine control plug-in, one forward and one aft
- Stereo and speakers
Salon/Dining Room
- Combined smoke/CO detector
- Fold down 65” TV with Stereo and speakers
- Ceiling lights with dimmer control/switch
- Valance and floor lighting with switch
- Upholstered settee
- HDMI socket
- Extendable dining table
- Dining buffet unit
- Fixed adhesion type tinted laminated tempered glass windows
- Recessed window boxes with manual window blinds
- AC outlets
- USB power outlets
- Electric stainless steel framed, tempered glass sliding door to aft deck
- Storage cabinets on port and starboard house side with two (2) wireless phone chargers
- Stainless steel framed, tempered glass folding door to starboard side deck
- Bar stools (3)
Day Head
- CORIAN counter top and backsplash with vessel sink, hot and cold faucet and storage cabinet under
- TECMA electric head (fresh water flush)
- Exhaust blower
- Overhead lights with switch
- AC GFI outlet
- Lighted vanity mirror
Galley & Dinette
- 27” BOSCH oven
- 27” BOSCH built-in microwave/hood
- 27” BOSCH cook top
- 24” BOSCH dishwasher
- SUBZERO 42” standing fridge/freezer
- SUBZERO 24” drawer freezer
- Trash compactor
- Garbage disposal
- Quartz counter top
- Stainless steel double sink
- FENIX covered galley island
- FENIX covered cabinets, upper and lower, drawers below countertop
- Hot and cold water faucet with removable spray handle
- Recessed window boxes with manual window blinds
- USB power outlets
- Combined smoke/CO detector
- Overhead lights with dimmer control/switch
- Under cabinet lights with switch
- AC GFI outlets
- U-LINE ice maker
- CORIAN bar top
- Wine cooler
- Slide out bottle rack
- Champagne lounge with U-LINE champagne cooler and glass storage
- Oiled teak ceiling over Champagne lounge
- Carpeted floor at Champagne lounge
- Wood staircase to lower deck
- Wood staircase to helm station and skylounge
- Electrical subpanel
- Wine glass cabinet above wine cooler
- Three panel electric blinds at front windscreen
- Upholstered settee
- Wireless phone charger
- Stereo and speakers
Master Stateroom
- King berth with storage drawers under
- Overhead skylight with electric blind
- Carpeted perimeter around berth
- Fixed hull side windows
- Recessed window box with manual shade
- Two night tables
- Built-in recess for 65” TV with sound bar with storage cabinet under with wall lights on each side
- Combined smoke/CO detector
- Small safe
- Walk-in closet, cedar lined on back surfaces
- Upholstered settee
- Vanity unit with mirror
- Storage cabinets
- Ceiling lights with dimmer control/ switch
- Valance lights and floor lights with switch
- Two reading lights with switches
- USB power outlets
- HDMI socket
- Mirror on closet door
- AC outlets
- Isotherm refrigerator in master stateroom foyer
Master Head
- Ceiling lights with switch
- HIS & HER heads with smart glass partition and TECMA electric heads (2) (fresh water flush) with sintered stone walls and floor
- Stall shower with smart glass enclosure including hinged door with sintered stone walls and floor
- Faucets and bath accessories
- His & Her CORIAN vanity tops with wash basins
- Lighted mirrors over wash basins
- Medicine cabinets under wash basins
- Exhaust blowers
- AC GFI outlets
- Emergency escape from shower to foredeck via watertight hatch
- Fixed hull side windows
- Recessed window box with manual shade
VIP Stateroom
- Queen island berth with storage drawers under
- Two night stands
- Vanity with mirror
- Upholstered settee
- Storage cabinet
- Wardrobe, cedar lined on back surface with mirror on door
- Ceiling lights with switch
- Valance and floor lights with switch
- Two reading lights with switches
- Fixed hull side windows
- Recessed window box with manual shades
- Recess for 55” TV with sound bar with wall lights on each side
- Combined smoke/CO detector
- USB power outlets
- HDMI socket
- AC outlets
- Virtual skylight
VIP Head
- Ceiling lights with switch
- Stall shower with glass door sintered stone wall and floor
- Lighted mirror over wash basins
- Medicine cabinet under wash basins
- Faucets and bath accessories
- CORIAN vanity top with wash basin
- Exhaust blowers
- TECMA electric head (fresh water flush) in head compartment with glass door with sintered stone wall and floor
- Fixed hull side windows
- Recessed window box with manual shade
- AC GFI outlet
- Counter balanced door
- Sintered stone floor
Port Guest Stateroom
- Convertible twin berths with storage drawers under and carpet between
- Night stand
- Combined smoke/CO detector
- Wardrobe, cedar lined on back surface with mirror on door
- Ceiling lights with switch
- Valance and floor lights with switch
- Two reading lights with switches
- Fixed hull side window
- Recessed window box with manual shade
- 24” TV with sound bar
- USB power outlets
- HDMI socket
- AC outlets
Port Guest Head
- Ceiling lights with switch
- TECMA electric head (fresh water flush)
- Stall shower frameless glass door with sintered stone walls and floor
- Faucets and bath accessories
- CORIAN vanity top with wash basin
- Lighted mirror on over wash basin
- Medicine cabinet
- Fixed hull side window
- Recessed window box with manual shade
- Exhaust blower
- AC GFI outlet
- Sintered stone floor
Stateroom Guest Stateroom
- Convertible twin berths with storage drawers under and carpet between
- Night stand
- Combined smoke/CO detector
- Wardrobe, cedar lined on back surface with mirror on door
- Ceiling lights with switch
- Valance and floor lights with switch
- Two reading lights with switches
- Fixed hull side window
- Recessed window box with manual shade
- 24” TV with sound bar
- USB power outlets
- HDMI socket
- AC outlets
Stateroom Guest Head
- Ceiling lights with switch
- TECMA electric head (fresh water flush)
- Stall shower frameless glass door with sintered stone walls and floor
- Faucets and bath accessories
- CORIAN vanity top with wash basin
- Lighted mirror on over wash basin
- Medicine cabinet
- Fixed hull side window
- Recessed window box with manual shade
- Exhaust blower
- AC GFI outlet
- Sintered stone floor
Below Deck Foyer/Passageway
- Built in 27” GE washer
- Built in 27” GE dryer
- Carpeted floor
- Wall scone
- Ceiling lights with switch
Port Crew Stateroom
- Upper and lower berths
- Combined smoke/CO detector
- Wardrobe cedar lined on back surface
- Ceiling lights with switch
- Two reading lights with switches
- Fixed hull side window
- Recessed window box with manual shade
- Provision for 24” wall mounted TV with sound bar
- USB power outlets
- AC outlet
- AMTICO floor
Captain's Stateroom
- Double berth
- Fixed hull side window
- Recessed window box with manual shade
- 24” wall mounted TV with sound bar
- Combined smoke/CO detector
- Wardrobe cedar lined on back surface
- Ceiling lights with switch
- Reading light with switch
- USB power outlets
- AC outlet
- Fold down writing desk
- AMTICO floor
Crew Head
- Ceiling lights with switch
- TECMA electric head (fresh water flush)
- Stall shower
- CORIAN counter top with sink
- Mirrored medicine cabinet
- Faucets and bath accessories
- Exhaust blower
- AC GFI outlet
- AMTICO floor
- Painted interior
Crew Lounge
- Upholstered settee and CORIAN table
- Cabinet with CORIAN top, sink and faucet, refrigerator and microwave oven
- 24” wall mounted TV with sound bar
- Ceiling lights with switch
- AC outlets
- USB power outlets
- Watertight door to engine room
- Stair case to aft deck with stainless steel frame tempered glass sliding hatch
- AMTICO floor
- GARMIN/CZONE monitoring

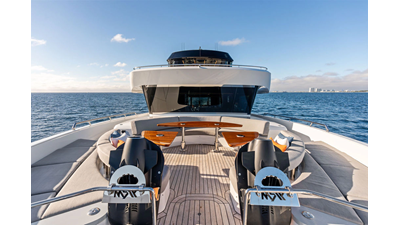

Foredeck/Side Deck
- Convertible sun pads
- Sun lounge
- Pop-up courtesy lights each side of sun lounge
- Three drop down oiled teak coffee tables
- Stainless steel cup holders
- Courtesy lights at deck level
- Sockets for awning post
- Storage lockers
- Storage locker for sea stairs
- Stereo and speakers
- Teak deck
Aft Deck
- Stainless steel stairs to flybridge with teak treads and courtesy lights
- Teak deck
- Convertible fiberglass seat with upholstered cushions
- Painted fiberglass wet bar with wash basin and faucet, fridge and icemaker with CORIAN counter top
- Fresh water wash down hose bib inside cabinet Storage lockers
- Twin stairs to transom sport deck with stainless steel gates
- Overhead lights with dimmer control/switch
- USB power outlets
- AC GFI outlets
- Sliding hatch to crew quarter
- Port and starboard capstan
- ZF remote engine control plug-in
- Stereo and speakers
Transom Swim Deck
- Teak deck
- Port and starboard shore power lockers
- Fresh water shower, hot and cold
- Watertight door to engine room
- Locker for shore power cable
- Pop-up cleats port and starboard for tender tie-up (not for towing)
- Step lights in stairs to aft deck
- Z-Lift boarding platform
- Storage lockers
- Watertight hatches to gyro compartment
Navigation Package
- Garmin 4kW marine radar, Garmin GPS, depth sounder, chart cartridge, Garmin 25W VHF, Garmin AIS800 and Garmin gWind wind sensor, 5G wifi network, CCTV Camera system. All interfaced to 22” Garmin displays. Pre wire for TracPhone V3/V3-IP
AV Package
- Samsung 4k TV, Bose speakers/sound bar for interior, Apple TV, Fusion stereo with JL Audio speakers and HDTV antenna
AV Electronics
Skylounge Helm
- (1) H25 DirecTV High Definition MPEG-4 receiver
- (1) APC UPS 600VA Battery Backup & Surge Protector
- (1) Samsung 50” 4K Smart QLED Ultra HDTV w / Quantum HD R
- (1) Apple TV 4K 64GB
- (1) RCA-HT2 (5 unit IR kit)
- (1) Fusion MS-RA770 Apollo
- (1) Sonance VP62R - 6 1/2” (165mm) textured polypropylene cone with a rubber surround, – pair
- (1) Fusion SVX300 Sirius radio receiver
Flybridge
- (1) Fusion MS-RA770 Apollo
- (1) JL Audio 93728, M6-770X-C-GWGW, 7.7-inch Coaxial Speaker, pair
Bow
- (1) JL Audio M6-650X-C-GWGW, 6.5” Coaxial 1” tweeter
- (1) Apollo MS-SRX400 Marine Zone stereo with built in Wi-Fi, AM/FM/ Bluetooth/ Apple Airplay/ Wi-Fi audio streaming/UPnP
Portuguese Bridge
- (1) Apollo MS-SRX400 Marine Zone stereo with built in Wi-Fi, AM/FM/ Bluetooth/ Apple Airplay/ Wi-Fi audio streaming/UPnP
- (1) JL Audio M6-770X-C-GWGW, 7.7-inch Coaxial Speaker,1” silk dome tweeter, Gloss White Trim Ring, Gloss White Grille (Pair)
Aft Deck
- (2) JL Audio M6-770X-C-GWGW, 7.7-inch Coaxial Speaker, 1” Silk dome tweeter, Gloss White Trim Ring(Gw), Gloss
- White Grill(Gw) PAIR (1) AFT Deck (1) Swim Platform
- (1) Samsung UN32N5300 31.5’ 1080p LED-LCD TV
- (1) H25 DirecTV High Definition MPEG-4 receiver
- (1) Fusion MS-RA770 Apollo 4.3” capacitive touch glass LCD color display AM/FM/ Bluetooth / Wi-Fi audio streaming / digital optical input / USB audio / AUX x2 / UPnP / MTP / SiriusXM-Ready
- RCA-HT2 (5 unit IR kit)
- (1) Apple TV 4K 64GB
Main Salon
- (1) Samsung 75’’ 4K Smart QLED Ultra HDTV w / Q HDR 8X
- (1) RCA-HT2
- (1) Apple TV 4K 64GB
- (1) H25 DirecTV High Definition MPEG-4 receiver
- (3) VP62R - 6 1/2” (165mm) textured polypropylene cone with a rubber surround, pivoting - pair
- (1) Denon 9.2 channel AVR-X4500H 4K AV receiver supports IMAX Enhanced, Dolby Atmos, DTS:X and Auro-3D for an immersive home theater experience
- (1) Tripplite:SU1000RTXLCD2U Smart online 1kva double conversion 2u UPS
- (1) Niles SW 6.5’ powered compact subwoofer, 800 watt
Master Stateroom
- (1) Samsung Q60R 65’’ 4K Smart QLED Ultra HDTV w / Q HDR 4X
- (1) Bose sound bar 500
- (1) DirecTV H25 High Definition MPEG-4 receiver
- (1) RCA-HT2 (5 unit IR kit)
- (1) APC UPS 600VA Battery Backup & Surge Protector with USB Charging Port
- (1) Apple TV 4K 64GB
VIP Stateroom
- (1) Samsung 55” 4K Smart QLED Ultra HDTV w / Quantum HD R
- (1) Apple TV 4K 64GB
- (1) DirecTV H25 High Definition MPEG-4 receiver
- (1) Bose SoundTouch 300 soundbar Bluetooth with NFC pairing, WiFi technology
- (1) RCA-HT2 (5 unit IR kit)
Guest Staterooms - 2
- (1) LG 24L J4540 HD 720p LED TV - 24” TV
- (1) DirecTV H25 High Definition MPEG-4 receiver
- (1) Bose Smart Soundbar 300 Powered sound bar with built-in Wi-Fi®, Bluetooth
- (1) Apple TV 4K 64GB
- (1) RCA-HT2 (5 unit IR kit)
Crew Area
- (1) LG 24LH4830-PU 24”-Class HD Smart LED TV, Built-In Wi-Fi & Ethernet Connectivity
- (1) DirecTV H25 High Definition MPEG-4 receiver
- (1) Bose Smart Soundbar 300 Powered sound bar with built-in Wi-Fi, Bluetooth
- (1) RCA-HT2 (5 unit IR kit)
Crew Cabin
- (1) LG 24” HD Smart LED TV 24LH4830-PU Built-In Wi-Fi and Ethernet Connectivity
- (1) DirecTV H25 High Definition MPEG-4 receiver
- (1) Apple TV 4K 64GB
- (1) Bose Smart Soundbar 300 Powered sound bar with built-in Wi-Fi, Bluetooth
Captain’s Cabin
- (1) LG 24” HD Smart LED TV 24LH4830-PU Built-In Wi-Fi and Ethernet Connectivity
- (1) DirecTV H25 High Definition MPEG-4 receiver
- (1) Apple TV 4K 64GB
- (1) Bose Smart Soundbar 300 Powered sound bar with built-in Wi-Fi, Bluetooth
Galley
- (1) Fusion MS-RA770 Apollo 4.3” capacitive touch glass LCD color display AM/FM/ Bluetooth / Wi-Fi audio streaming / digital optical input / USB audio / AUX x2 / UPnP / MTP / SiriusXM-Ready
- (1) Sonance VP62R - 6 1/2” (165mm) in ceiling speakers textured polypropylene cone with a rubber surround, pivoting– pair
SAT TV
- (1) KVH TracVision UHD7 features DIRECTV ultra-high-definition 4K TV entertainment at sea plus built-in support for DISH Network and Bell
- (1) KVH TracVision UHD7 Empty Dome/Baseplate
- (1) TracVision HD7/HD11 SWM Expansion Kit - 16 Tuners
- Prewire cables for off air antenna
- Prewire cables for VSAT system
Navigation Electronics
Helm MFDs
- (3) Garmin GPSMAP 8622 Chart plotter with 22” full HD screen, sunlight-readable
- (1) Garmin GRID (Garmin Remote Input Device)
- (1) Garmin Card Reader - 2 SD card slots for mapping
- (1) Garmin GPSMAP 742 Plus touchscreen combo To be located in Crew Quarters
- (1) Garmin GMR Fantom 56 6 Foot, 50 W solid-state open-array radar with pedestal, MotionScope technology detects and highlights moving targets in different colors to help avoid collisions, find flocks of birds and track weather
- (3) Garmin GMS 10 Network Port Expander
- (1) Garmin AIS 800 Blackbox Transceiver has an internal VHF antenna splitter, which allows the VHF and AIS to share a single antenna. It includes a built-in GPS (with connector for optional external antenna)
- (2) Garmin VHF 215 VHF Marine Radio, Standard Class D Digital Selective Calling (DSC) functionality, 25-watt transmit power with built-in GPS
- (2) Newmar PA-60/40 Hailer Horn deck horn / hailer
- (1) Garmin VHF 215 VHF Marine Radio To be located in crew quarters
Depth Sounder
- (1) Garmin GSD 25 Advanced Sonar Module
- (1) Garmin Airmar B744VL bronze transducer, depth of 800 to 1,200 ft.
XM Weather System
- (1) Garmin GXM 53 Sirius XM weather antenna
Depth, Speed, Temp, Wind
- (1) Garmin GMI 20 Digital Marine Instrument Display
- (1) Garmin GND™ 10 Black Box Bridge
- (1) Garmin gWind™ Transducer
- (1) Airmar DST800L-235-N2K Bronze Thru-Hull – Long Stem
Autopilot
- (1) Garmin Reactor 40 Steer-by-wire Standard Core pack includes GHC 20
Camera System
- (5) GC 200 Marine Camera - IP Camera 2 - Engine Room, Port/Stbd Wings & AFT
WiFi System
- (1) AN-7000 Dual-Band, High Power Wi-Fi Client Industry’s first high power, dual-band Marine Wi-Fi solution.
- Features high power radios, Gigabit Ether and a lightning fast chipset. 2.4 GHz (802.11bgn) @ 1000mW (1W), 5 GHz (802.11an) @ 1000mW (1W), 2x 4’ Comrod antennas
4G Cellular System
- (1) MDS-242-A 4G LTE Advanced high speed modem, dual SIM card slots
- (6) MAP-7 Dual Band Marine Access Point, Dual-band (2.4 GHz 802.11b/g/n and 5 GHz 802.11a/n) access point
- (1) SX-24P8 24-Port Managed Switch with 8 PoE or Up to 4 PoE+
- (1) SMART750R... SmartPro 120V 750VA 600W Line-Interactive Sine Wave UPS, 1U Rackmount
